Horlacher sport II, 1993 spacer
spacer

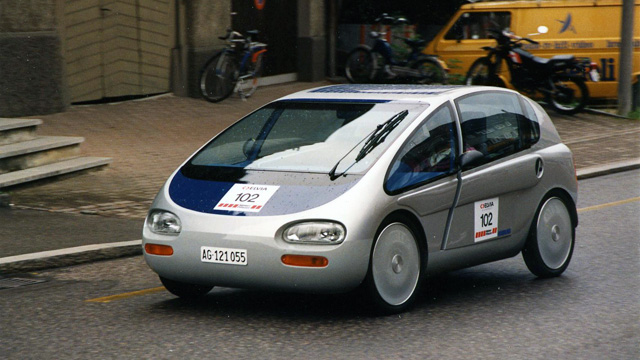

Sport 2



previous | next | overview prototypes

Design:        Max Horlacher


Technical Specifications

Dimensions / Specifications

Length: 280 cm
Width: 144 cm
Height: 122 cm
Wheels: 4 x 13", 4 x 14", 4 x 15"
Body material: Fibre-reinforced composite materials
Pure body weight: 80 kg
Curb weight: 550 kg (incl. 12 lead acid batteries of 270 kg)
Payload: 200 kg
Gross weight: max. 750 kg
Brakes: Four disk brakes. Regenerative braking.


Batteries, Drivetrain, Performances

Batteries: 12 lead acid batteries, 75 Ah
Drivetrain (front wheel drive): BRUSA AMC 300, gt-20 AC-motor, max. power: 21 kW
Energy consumption*: 6 - 9 kWh per 100 km (measured from battery)
max. speed: 125 km/h
Acceleration: 0 - 50 km/h: 8 seconds
max. gradient: 22%
Range*: 70 - 120 km


* depending on auxiliaries in operation, driving conditions (topography...) and driving style
