Horlacher GL-88 "EGG", 1988 spacer
spacer

Horlacher Ei/Egg



previous | next | overview prototypes

Design:        Max Horlacher

spacer

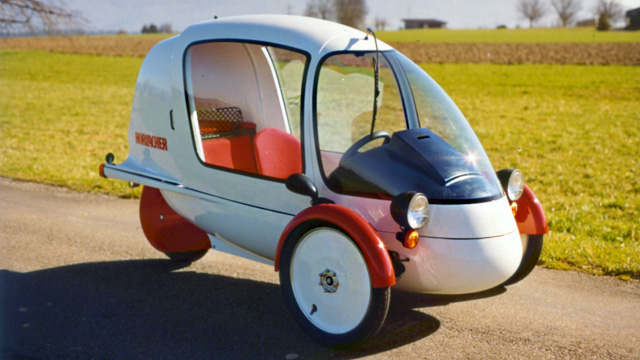

Horlacher "EGG"

Technical Specifications

Dimensions / Specifications

Length: 255 cm
Width: 131 cm
Height: 142 cm
Wheels: 3 x 15"
Body material: Fibre-reinforced composite materials
Curb weight: 300 kg (incl. 11 Levo GT55 12V batteries)
Payload: 150 kg
Gross weight: max. 450 kg
Brakes: 3 disk brakes with aluminium calipers, Regenerative braking.


Batteries, Drivetrain, Performances

Batteries: 11 Levo GT55 12V lead-acid batteries
Drivetrain: BRUSA AMC 200, AC-motor, max. power: 8 kW
Energy consumption*: 3 - 4 kWh per 100 km (measured from battery)
max. speed: 80 km/h
max. gradient: 20%
Range*: max. 100 km

* depending on auxiliaries in operation, driving conditions (topography...) and driving style
