Horlacher Pick-up I, 1993 spacer
spacer



previous | next | overview prototypes

Developed for: SMUD (Sacramento Municipal Utility District), California
In cooperation with: ESORO AG (Zürich), PASOL AG (Titterten)
Design: Max Horlacher

spacer

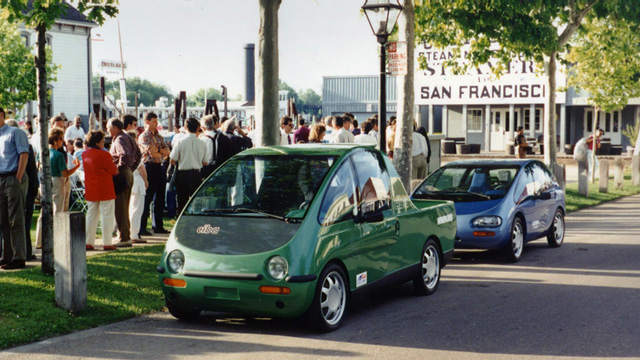

Pick-up I

Technical Specifications

Dimensions / Specifications

Length: 350 cm
Width: 144 cm
Height: 144 cm
Wheels: 4 x 15"
Body material: Fibre-reinforced composite materials
Curb weight: 640 kg
Payload: 180 kg
Gross weight: max. 820 kg
Brakes: Four disk brakes. Regenerative braking


Batteries, Drivetrain, Performances

Batteries: 12 flooded lead acid batteries, 75 Ah
Drivetrain (front wheel drive): BRUSA AMC 300, gt-20 AC-motor, max. power: 21 kW
Energy consumption*: 7 - 11 kWh per 100 km (measured from battery)
max. speed: 100 km/h
Acceleration: 0 - 50 km/h: 10 seconds
max. gradient: 22%
Range*: 70 - 100 km


* depending on auxiliaries in operation, driving conditions (topography...) and driving style
Equipment

• 500 W electric defroster
